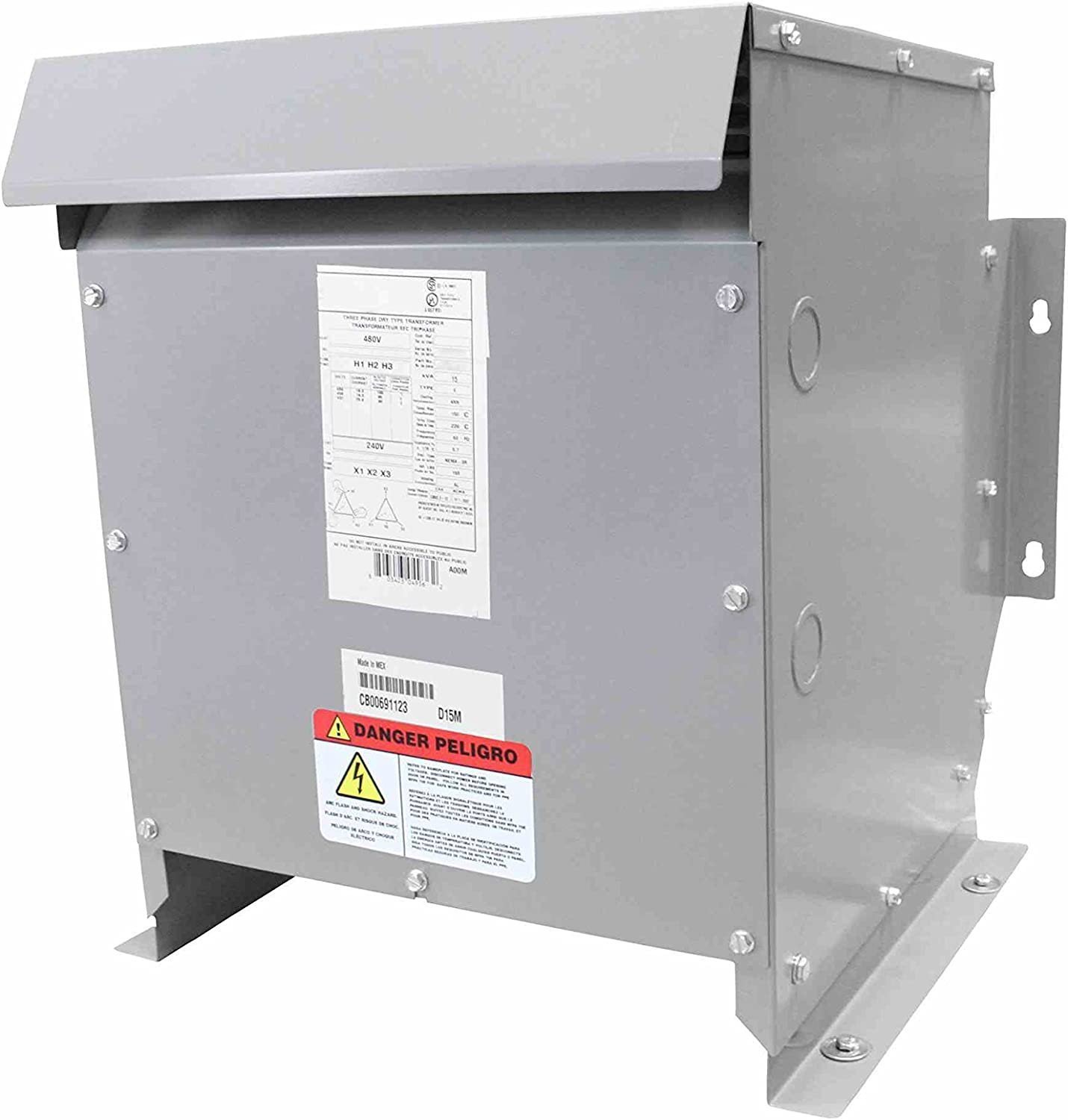

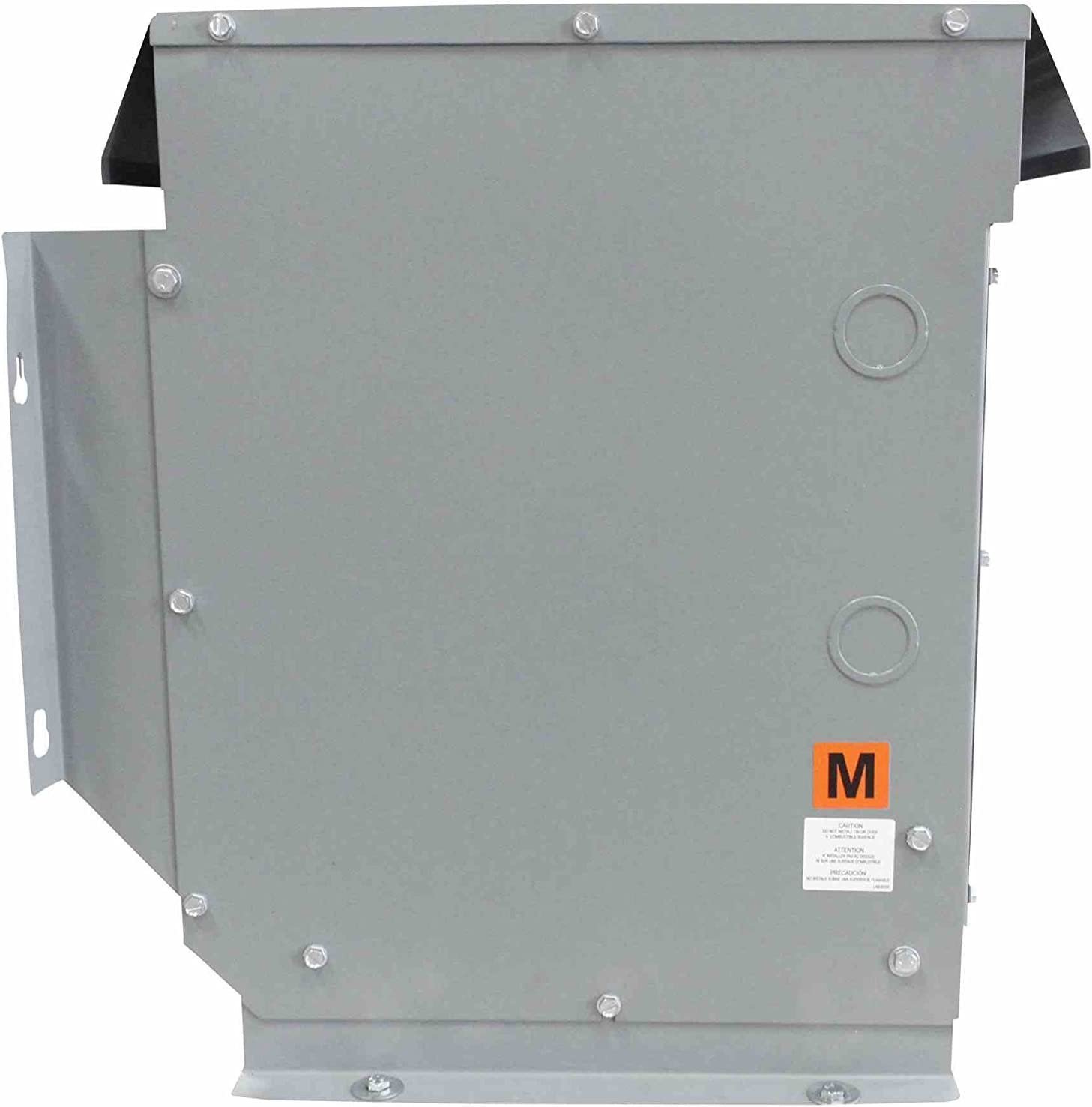

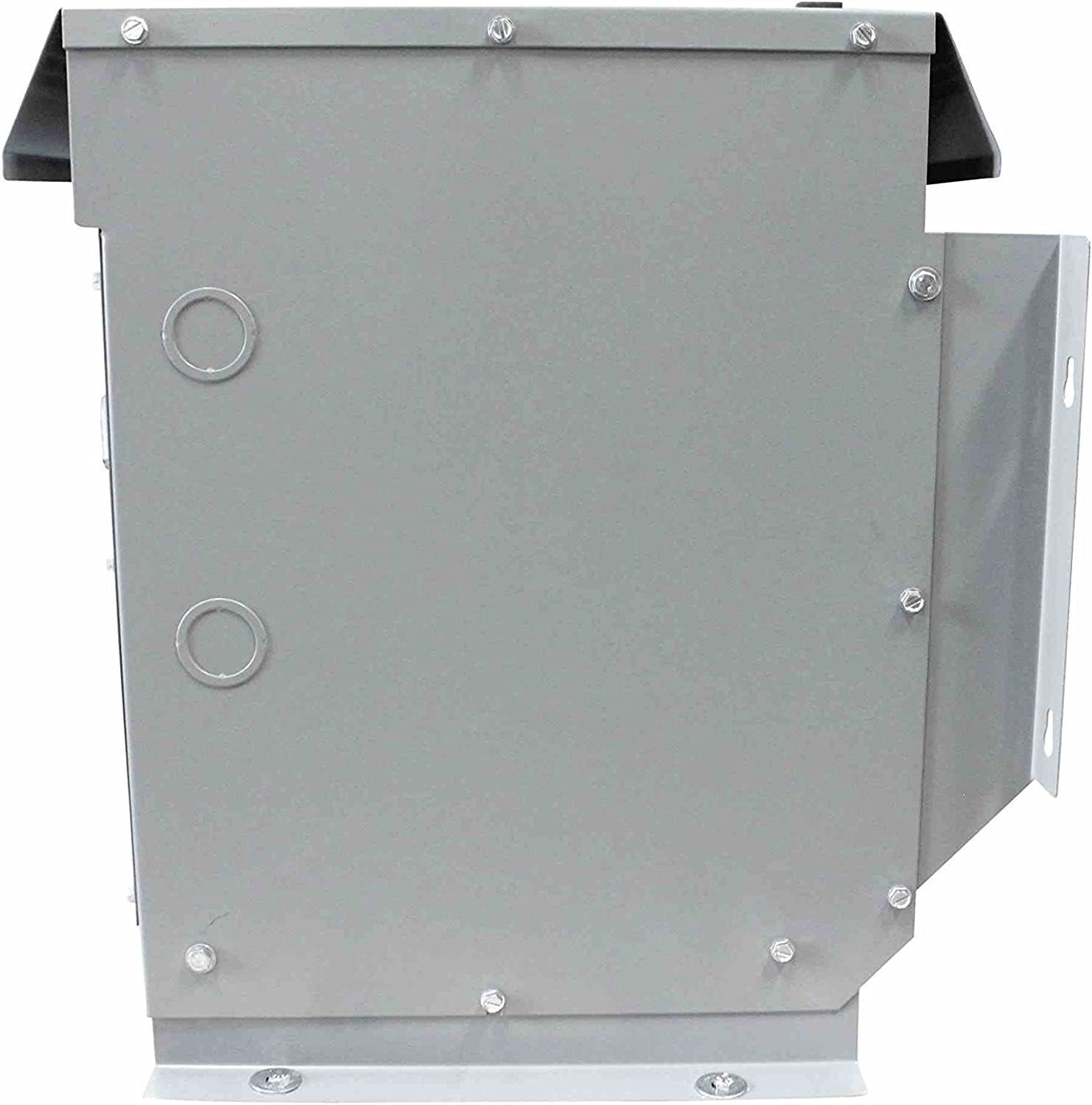

Buy 45 kva Three Phase Transformer 480V Delta Primary – 208Y/120V Secondary
Original price was: $3,999.00.$3,500.00Current price is: $3,500.00.
Buy 45 kva Three Phase Transformer 480V Online
45 kVa Transformer – 480V Three Phase – 480V Delta Primary – 208Y/120V Secondary – NEMA 4X
- Phase – Electrical: 3
- Input Voltage – Transformer: 480V AC Delta
- Output Voltage – Transformer: 120V AC, 208V AC Wye
- 45KVA Transformer – 480V Three Phase – 480V Delta Primary – 208Y/120V Secondary.
- Temp Rise: 150 C Hertz: 60Hz
- Enclosure: Steel NEMA 4X Enclosure
- Windings: Aluminum Height: 28.8
- Taps: (2) 2.5% FCAN (4) 2.5% FCBN Approvals: UL CUL
Buy 45 kva 3 Phase Transformer Online
Product Description
Buy 45 kva Three Phase Transformer 480v
Three Phase Transformer, 45kVA, 480V
45 kva Three Phase Transformer 480V Delta Primary – 208Y/120V Secondary
Three Phase Transformer, Input Voltage – Transformer 480V AC Delta, Output Voltage – Transformer 120V AC, 208V AC Wye, VA Rating – Transformer 45 kVA, Mounting – Transformer Floor, Outdoor Rated – Transformer Yes, Voltage Function – Transformer Step Down, Winding Material – Transformer Aluminum, Hz – Electrical 60 Hz, Temp. Rise 80 Degrees C, Enclosure Rating NEMA 3R
Acme Electric #T3045K0013BSB Specifications
- Zoro #: G0130503
- Mfr #: T3045K0013BSB
- Phase – Electrical: 3
- Input Voltage – Transformer: 480V AC Delta
- Output Voltage – Transformer: 120V AC, 208V AC Wye
- Item – Transformer: Three-Phase Transformer
- VA Rating – Transformer: 45 kVA
- Mounting – Transformer: Floor
- Outdoor Rated – Transformer: Yes
- Temp. Rise: 80 Degrees C
- Winding Material – Transformer: Aluminum
- Hz – Electrical: 60 Hz
- Input Voltage: 480VAC
- Mounting: Floor
- Includes: Weathershield
- Voltage Function – Transformer: Step Down
- Color: ASA 61 Gray
- Enclosure Type: Indoor/Outdoor
- Mounting – Transformer: Floor
- Depth: 22.37 in
- VA Rating: 45kVA
- Enclosure Rating: NEMA 3R
- Height: 29.41 in
- Width: 28.15 in
- Enclosure Material: Steel
- Output Voltage: 208VAC Wye/120VAC
- Item: Three-Phase Transformer
- Standards: C22.2 No. 47, File E12547, LR7357-32, UL 1561
- Hz: 60
- Knockout Size – Transformer: No Knockout
480V Delta Primary – 208Y/120V Secondary 480V Delta Primary – 208Y/120V Secondary
Three Phase Transformer Input 480VAC Delta
These Three Phase transformers offer consistent, smooth voltage transformation at 480VAC input. Transformers 15kVA and higher that meet DOE 2016 legislation will help lower operating costs, lower cost of ownership, increase profitability, and reduce overall greenhouse gas emissions. In addition to energy-efficient transformers and general application three-phase transformers, you can choose from the following additional types of transformers: •
Drive Isolation Transformers, which decrease line current waveform distortion, improving the power factor of the motor drive load. These transformers also reduce voltage distortion, which helps to prevent motor drives from affecting sensitive loads elsewhere on the service • Harmonic Mitigating Transformers reduce supply voltage flat topping and improve the overall power factor of the supply system • Harsh Environment Transformers are designed specifically for outside control panel installation
Three Phase Energy Efficient Transformer
|
120V AC; 208V AC Wye
|
No
|
115 °C
|
Copper
|
45 kVA
|
ACME ELECTRIC
|
$6,334.87
|
Three Phase Harmonic Mitigating Transformer
|
120V AC; 208V AC ZZ
|
Yes
|
150 °C
|
Copper
|
45 kVA
|
ACME ELECTRIC
|
$9,162.63
|
Three Phase Transformer
|
120V AC; 208V AC Wye
|
No
|
150 °C
|
Aluminum
|
45 kVA
|
DAYTON
|
$3,599.72
|
|
120V AC; 208V AC Wye
|
Yes
|
80 °C
|
Aluminum
|
45 kVA
|
ACME ELECTRIC
|
$5,806.79
|
|
120V AC; 208V AC Wye
|
Yes
|
115 °C
|
Aluminum
|
45 kVA
|
ACME ELECTRIC
|
$5,403.92
|
|
120V AC; 208V AC Wye
|
Yes
|
150 °C
|
Aluminum
|
45 kVA
|
ACME ELECTRIC
|
$4,113.30
|
|
120V AC Center Tap; 240V AC Delta
|
No
|
150 °C
|
Aluminum
|
45 kVA
|
DAYTON
|
$3,599.72
|
|
120V AC Center Tap; 240V AC Delta
|
Yes
|
150 °C
|
Aluminum
|
45 kVA
|
ACME ELECTRIC
|
$4,119.85
|
|
277V AC; 480V AC Wye
|
Yes
|
150 °C
|
Aluminum
|
45 kVA
|
ACME ELECTRIC
|
$4,935.58
|
